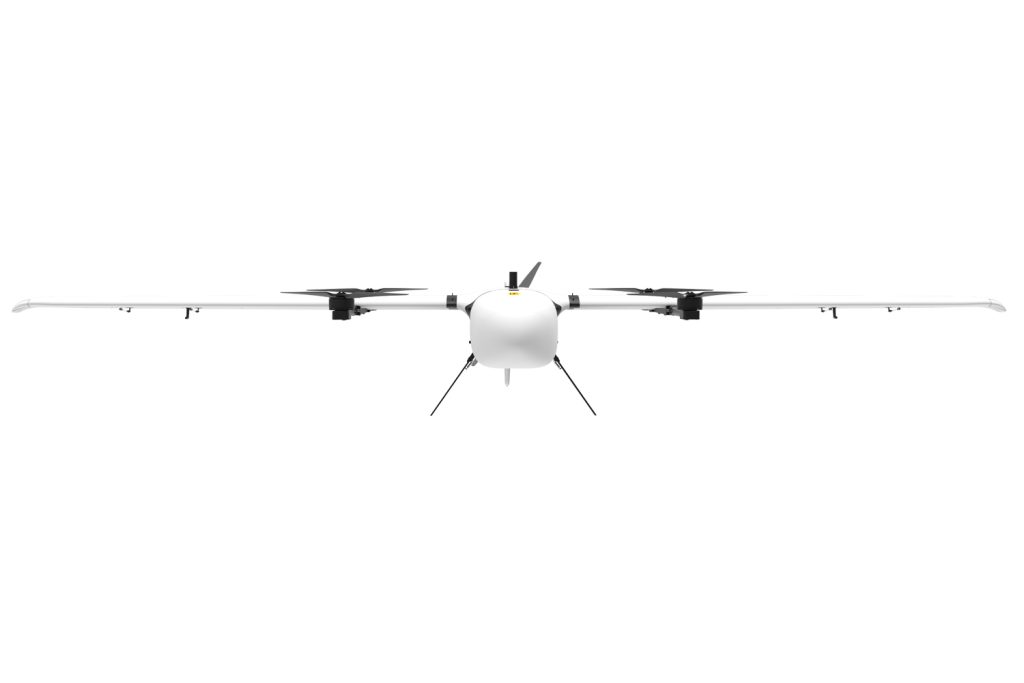

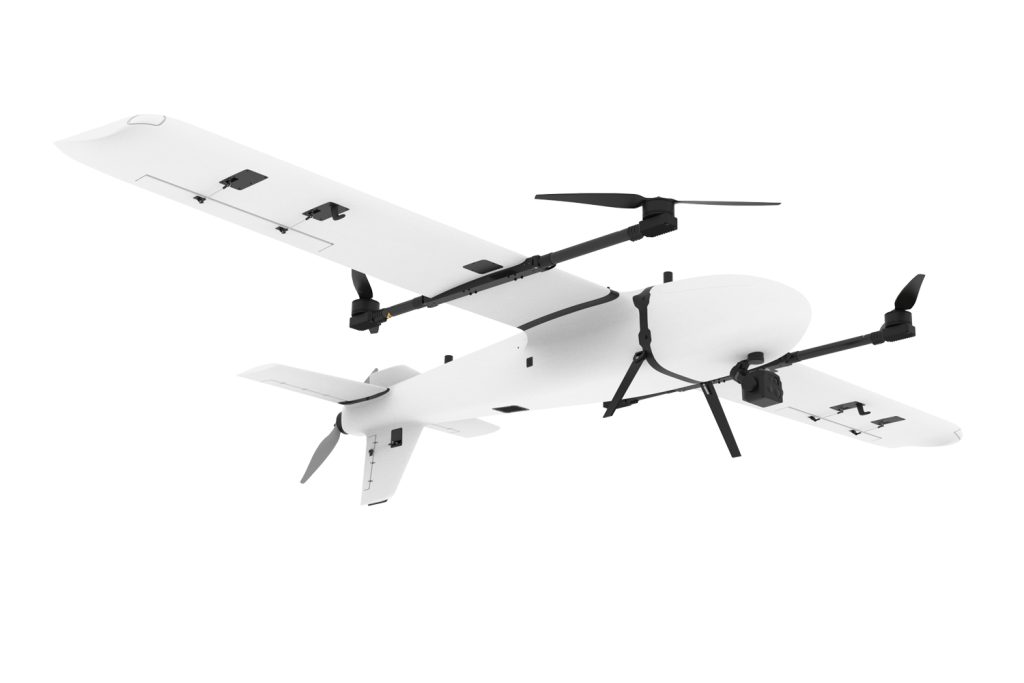

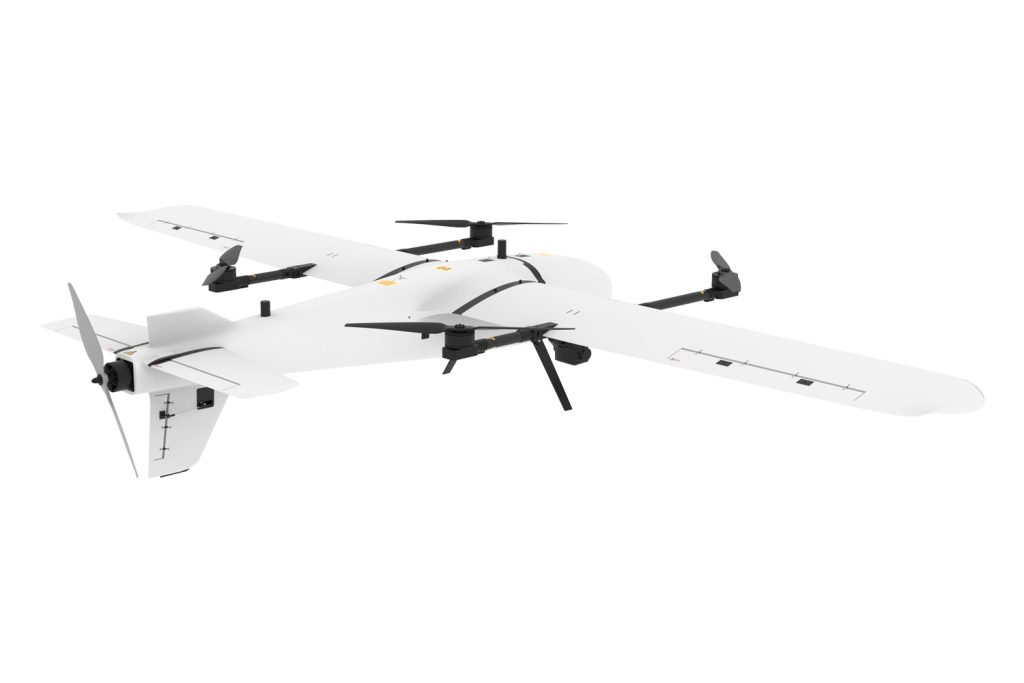

Pioneer 3200
The Pioneer 3200 is a 24kg-class vertical takeoff and landing fixed-wing aircraftequipped with a 3-5kg load.
Basic parameters
Material: EPO, carbon fiber, aviation aluminum alloy, engineering plastic, etc.
Wingspan: 3.2m
Wing area:100dm2
Fuselage: length1.68m, height0.41m
Disassembly method: tool-less disassembly
Transport box size: 1.46m×0.46m×0.53m
Payload
Maximum takeoff weight: 24.9 kg(at 500meters above sea level)
Maximum load: 5kg
Flight
Take-off and landing mode:VTOL
Practical lift altitude：4000m
Maximum airspeed:35 m/s
Maximum flight duration: 168 min (with a 1 kg payload)
Maximum flight range: 217 km (with a 1 kg payload)
Wind resistance: <36 km/h
APPLICATION AREAS
It can be widely used in topographic mapping, land survey, engineering survey, digital city, planning and construction, landscape planning, precision agriculture, environmental protection monitoring, ecological monitoring and other fields.
